Fuel pump conversion
|
 |
|
|
|
|
|
|
|
|
|
|
|
Drill the bypass cover
|
|
Now you're committed. (Or should be!)

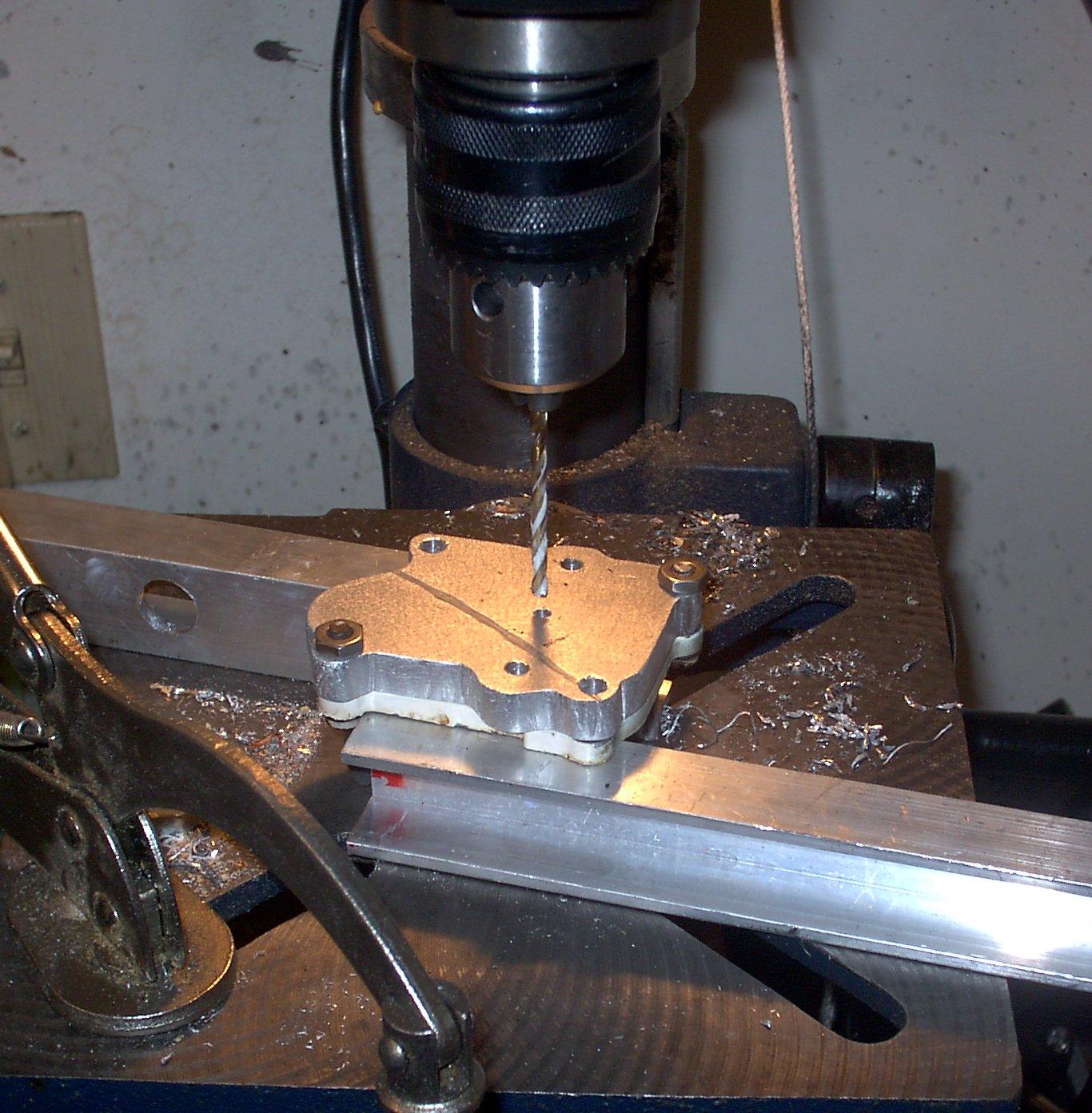

Temporarily bolt the mounting plate to the bypass cover, and use the hole you just drilled in the mounting plate to guide the drill in through the bypass cover. The 10hp cover is curved so this is virtually the only way to start the drill properly.
Jump ahead and have a look at the next step. To connect the pump and bypass cover an aluminium tube is soldered to the cover. Drill the bypass cover up to the outside diameter of the tube. A light press fit is ideal if you can acheive it. Drill the mounting plate a little larger so the tube slides easily through it.
|
|
|
|
|
|
|
|
|
