Tachometer
|
 |
|
|
|
|
|
|
|
|
|
|
|

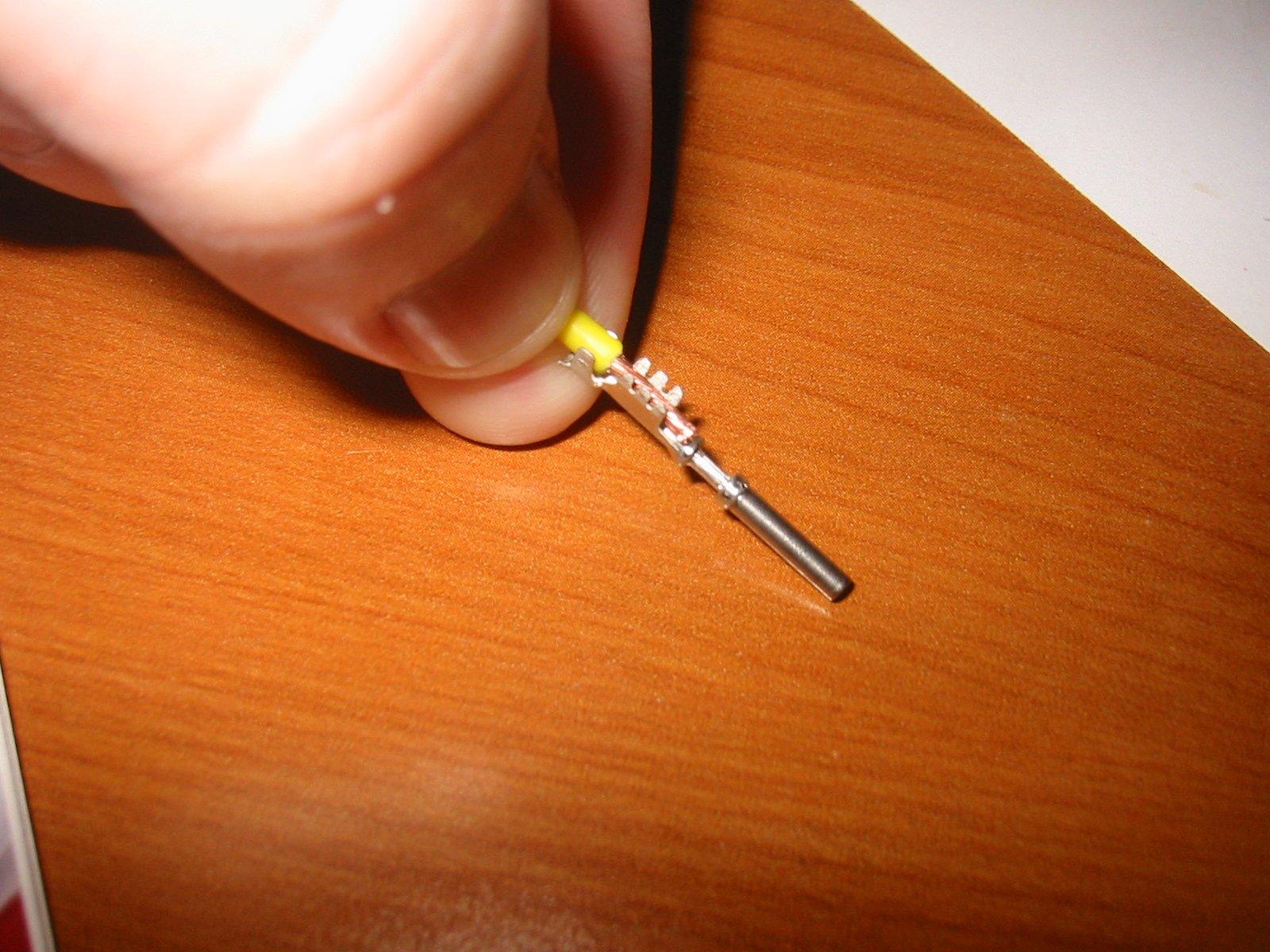

Crimp the socket connector onto tach signal wire
|
|
Crimp the "Terminal Socket" appropriate for this connector, H-D 72076-00 onto the tach signal wire. The proper tool no doubt makes this a lot easier, but if you are careful, you can get a good crimp. You need to crimp these in such a way to maintain a round shape, don't just squash the crap out of it or else you'll never get the crimped area into that small hole in the ECM connector.
The set of tabs at the end of the crimp are are designed to crimp the insulator. The rest are designed to crimp the wire itself to form the connection.
|
|
|
|
|
|
|
|
|
