Tachometer
|
 |
|
|
|
|
|
|
|
|
|
|
|

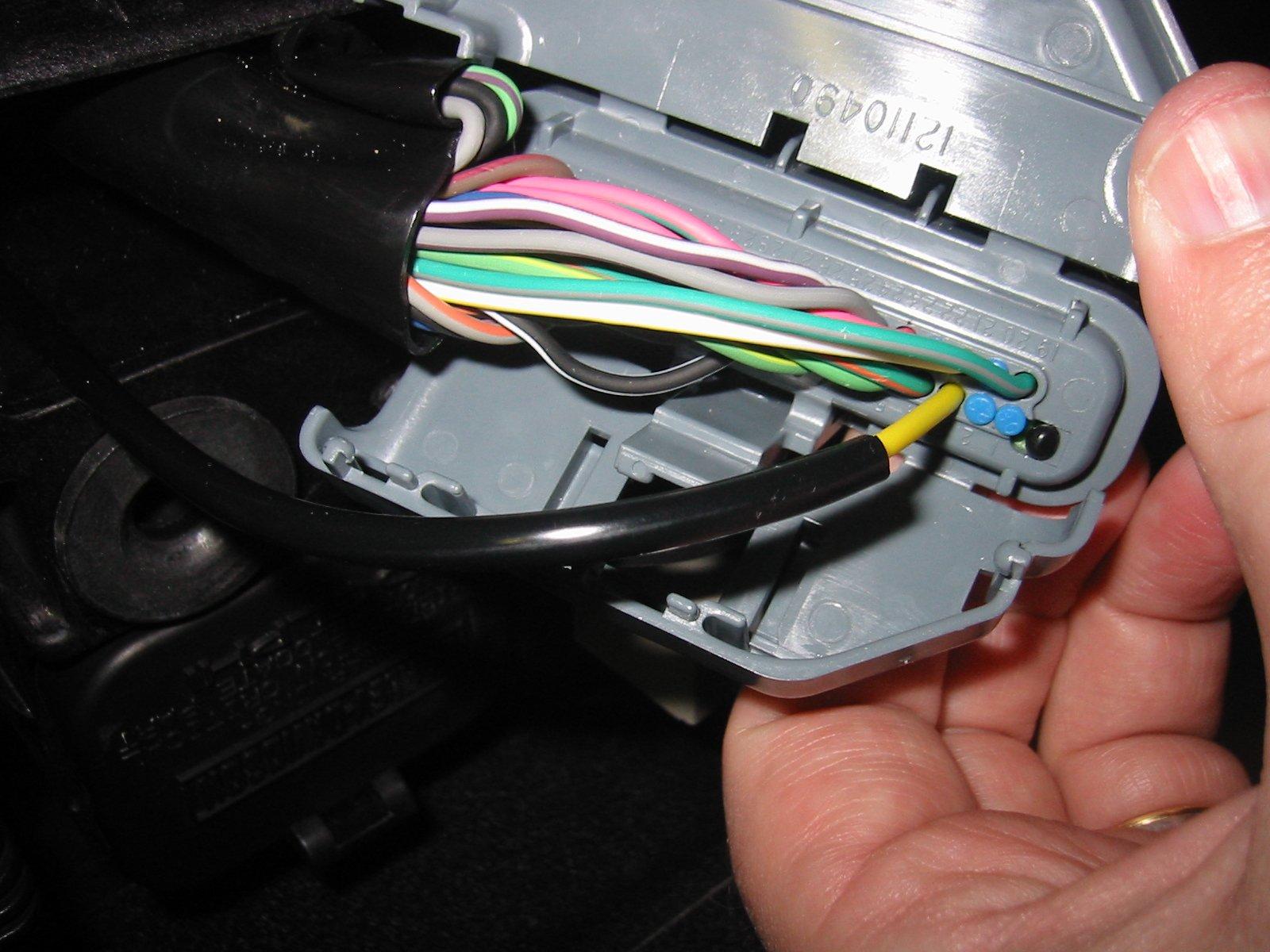

Install tach signal wire into ECM connector
|
|
Pin #3 is unused (and unlabeled in the wiring diagrams) but there is a suitable tach signal here. There is probably a blue plug in socket #3, remove it with a small screwdriver.
This wire is actually probably one size too big for this connector, though I was able to get the insulation to fit inside the connector socket.
Slide the metal connector and wire into the ECM connector until the socket clicks in place. Check it from the front of the connector and make sure that the socket for pin #3 looks like it is in the same position as all the others.
|
|
|
|
|
|
|
|
|
