Wood Buring Stove From Water Heater Tank
|
 |
|
|
|
|
|
|
|
|
|
|
|
Need to attach a 6 inch chimney pipe to this guy
|
|

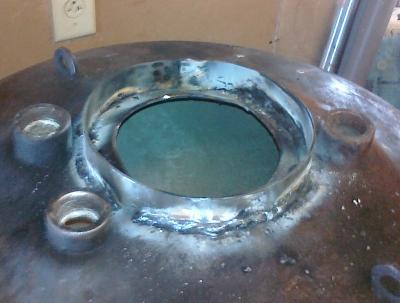

the hole I had left after I cut the original water heater chimney out was about 5 inches, and I am using 6 inch black chimney pipe. I need a collar or something to join the chimney to the stove - tank. I dug up some 1/8 inch thick by 1 inch wide flat iron in the shop and bent it into a circle that fit the inside of the pipe. Weld that onto the top of the tank and you have a collar for the chimney..
The three holes are the original water in - out and sacrificial anode holes. They all now have 3/4 inch pipe plugs in them.
|
|
|
|
|
|
|
|
|
