CXZ MAN 5L16/24,6L16/24£¬7L16/24,8L16/24,9L16/24 medium-speed diesel engines£¬generator set 50Hz £¬6
|
 |
|
|
|
|
|
|
|
|
|
|
|
(Insert New Caption)
|
|

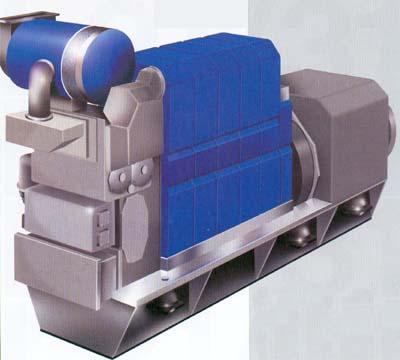

CXZ MAN 5L21/31 medium speed diesel generator set 1000kw-900kw 50hz, 900kw-905kw 60hz
Product Description:
TYPE:L21/31
Configuration:In-Line Speed:900/1000r/min
Bore:210mm
Pision speed:9.3/10.3m/s
Stroke:310mm
Mean effective pressure:2.36/2.24MPa
Max.combustion pressure:20.OMPa Voltage:450V/400V
Fuel quality:700cSt/50¡ãC Frequency:60/50 Hz
generator set data
Engine type: 5L21/31
Output: 900r/min/60Hz Eng.kW 950 Gen.Kw 905
1000r/min/50Hz Eng.kW 1000 Gen.kW 950
overall dimensions: C:5860mm D:3050mm
Dry weight: 21.3 tons
|
|
|
|
|
|
|
|
|
