CXZ MAN 5L16/24,6L16/24£¬7L16/24,8L16/24,9L16/24 medium-speed diesel engines£¬generator set 50Hz £¬6
|
 |
|
|
|
|
|
|
|
|
|
|
|

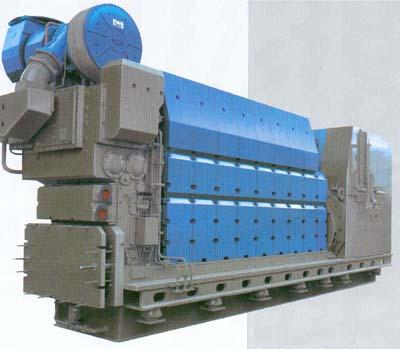

CXZ MAN 6L21/31 medium speed diesel
|
|
CXZ MAN 6L21/31 medium speed diesel 1290kw-1225 kw 50HZ, 1200 kw -1140 kw 60HZ
Product Description:
TYPE:L21/31
Configuration:In-Line Speed:900/1000r/min
Bore:210mm
Pision speed:9.3/10.3m/s
Stroke:310mm
Mean effective pressure:2.36/2.24MPa
Max.combustion pressure:20.OMPa Voltage:450V/400V
Fuel quality:700cSt/50¡ãC Frequency:60/50 Hz
generator set data
Engine type: 6L21/31
Output: 900r/min/60Hz Eng.kW 1200 Gen.Kw 1140
1000r/min/50Hz Eng.kW 1290 Gen.kW 1225
overall dimensions: C:6300mm D: 3100mm
Dry weight: 24.3 tons
Main engine data
Engine type: 6L21/31
Output: 1290kW(1755bhp)
speed: 1000r/min
overall dimensions: A: 4224mm B: 2821mm C: 3284mm D: 2220mm
Dry weight: 13.9 tons
|
|
|
|
|
|
|
|
|
