Johnson 90 hp Repower
|
 |
|
|
|
|
|
|
|
|
|
|
|

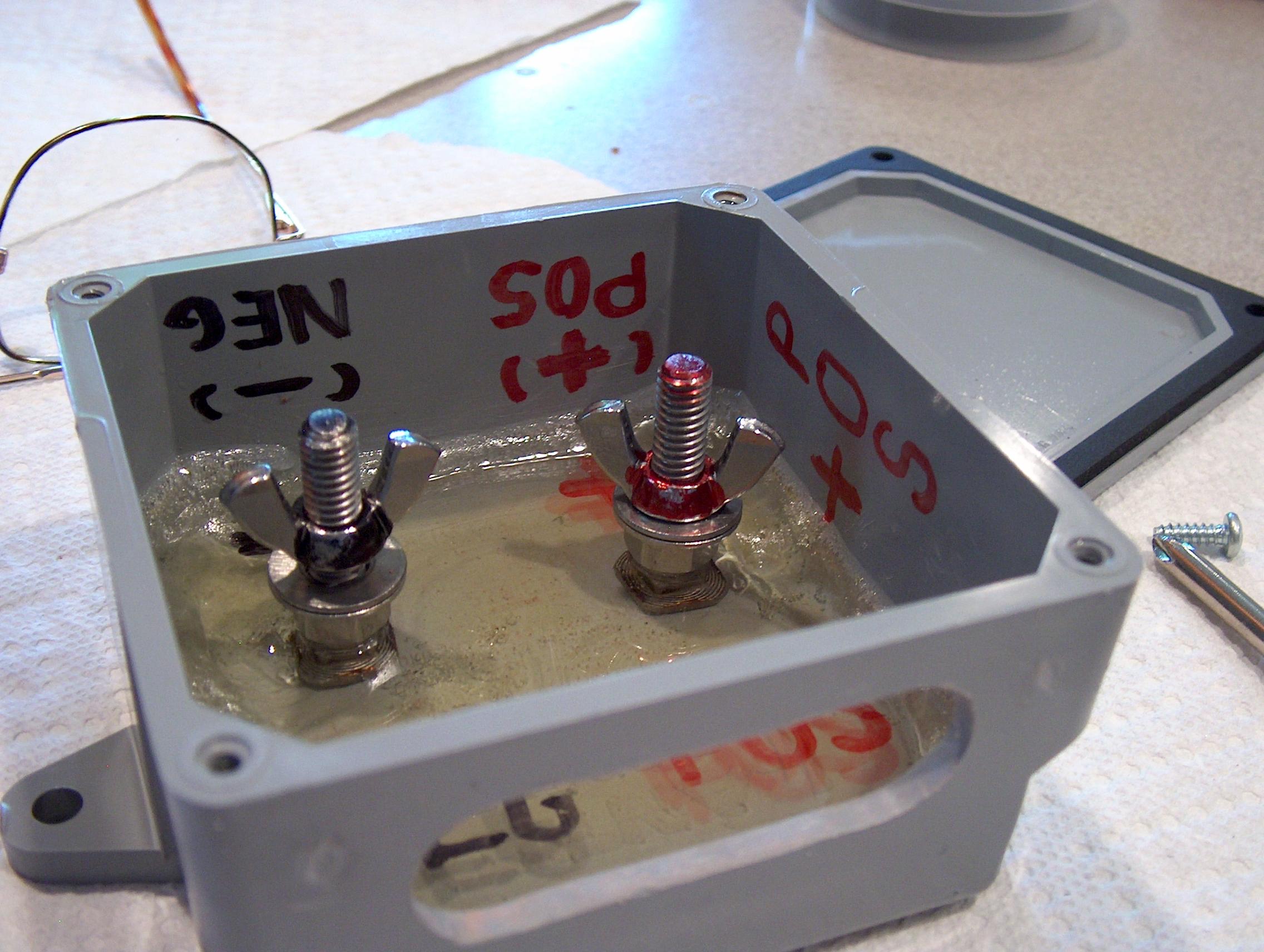

Assembled Junction Box
|
|
|
Two stainless steel 5/16 x 2" carraige bolts are used for the studs. The sides of the heads are ground flat so they will not spin in the epoxy. About 3/8" is cut off the end so the bolts fit inside the box, then 4 ounces of epoxy is poured in. Note that the epoxy got so hot that it expanded a bit around the parimiter. But the bolts are held in tight. A couple of nuts, washers and wing nuts complete the hardware. Cut a 3/4" wide slot in the bottom to feed the 4 AWG cables through. And labeled the posts Positive and Netagive to prevent accidental crossing of cables.
|
|
|
|
|
|
|
|
|
