12-inch F6 Truss Dobsonian
|
 |
|
|
|
|
|
|
|
|
|
|
|
Fabricating the Mirror Cell
|
|
For budgetting reasons I abandoned my original plans to have the mirror cell water-jetted from aluminum. Instead I've improvised a low-tech method of cutting the desired shape and hole pattern using tools in my home shop.

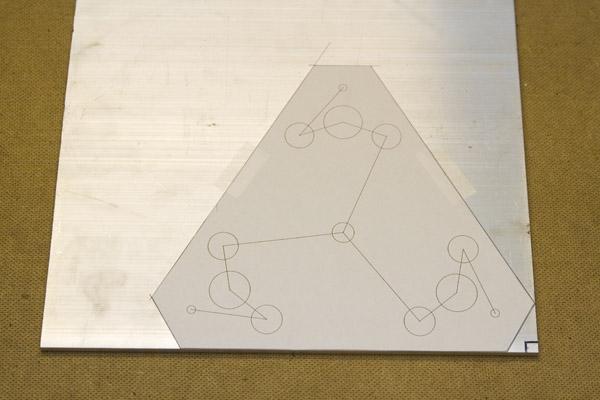

Here I've printed out the CAD drawing at 1:1 to transfer the pattern onto the aluminum. Lines were digitized between hole centers for the sole purpose of scribing those points into the metal.
|
|
|
|
|
|
|
|
|
