8-inch F5 Newtonian Astrograph
|
 |
|
|
|
|
|
|
|
|
|
|
|
Installing the Mirror Cell
|
|
|

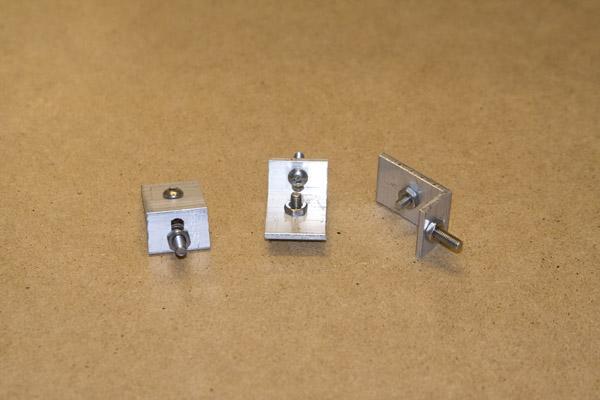

Mounting brackets for the mirror cell were fabricated using three 1" sections of aluminum L-channel. I bought these pieces at the local metals supplier for less than a dollar each. One side is longer than the other, measuring 1.5" and 0.75" respectively. The brackets are fastened to both the tube wall and the mirror cell using 10-32 screws. I wanted a small amount of adjustablility with respect to the tube's inner diameter, so I routed slots in the face that abutts the mirror cell (rather than single holes).
|
|
|
|
|
|
|
|
|
