Tachometer
|
 |
|
|
|
|
|
|
|
|
|
|
|
Tap tach power into the power wire on speedo plug
|
|
The red wire from the tachometer needs to be spliced into the orange and white wire on the speedometer plug (pin #1). Drawing 12VDC from this wire ensures the tach will always be on and lit when the speedo is on and lit.

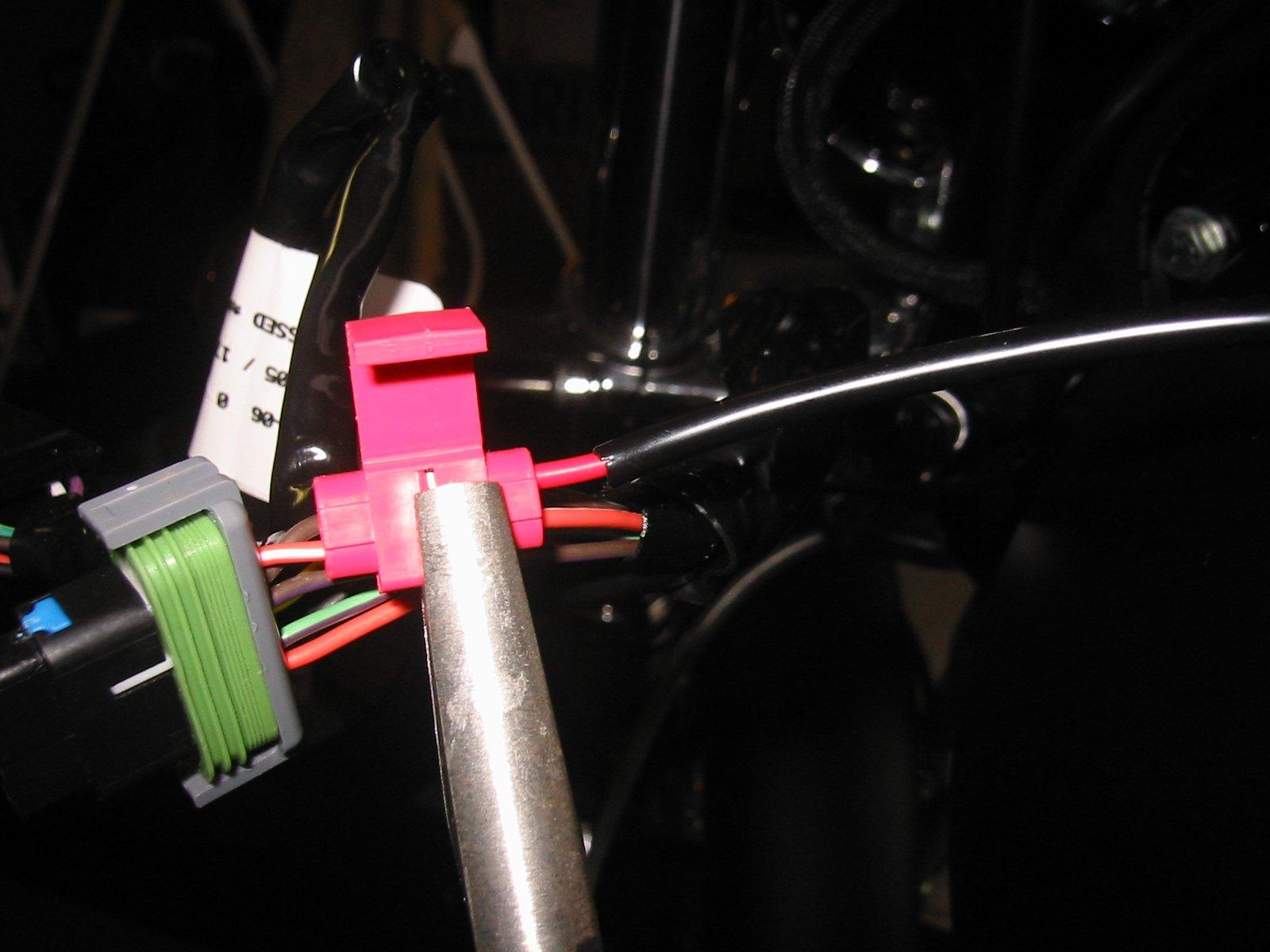

I am not sure the correct name for the clamp on wire taps. There are two channels inside these things. One goes all the way through, put the wire you are tapping into through there. The other channel does not go all the way through, put the tach red wire in that channel and clamp the metal "guillotine" down.
This will penetrate the insulation and make contact with both wires. Then flip the protective cover over and snap it locked.
|
|
|
|
|
|
|
|
|
