Tachometer
|
 |
|
|
|
|
|
|
|
|
|
|
|
Make connections
|
|
I bought my mini tach as part of a dealer close out. This was part of a kit for softail customs (with a bracket, wires, sheathing, etc.)
There are three binding posts marked:
+ G S

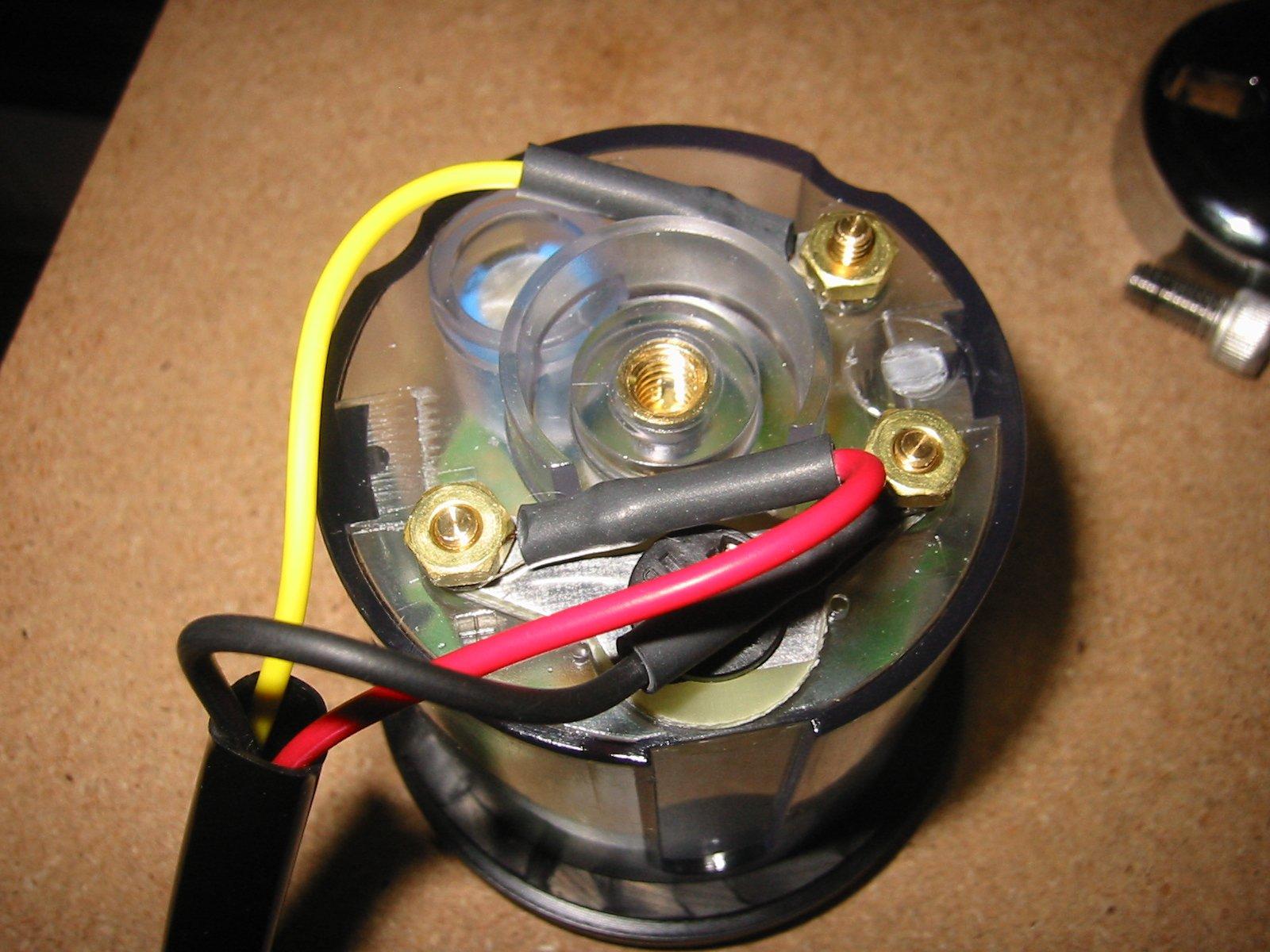

My kit had a 3 wire rig with each wire in a sheath and the bundle in a larger sheath. One end of each wire has a ring connector that works perfectly on these binding posts.
Hook up as follow:
Red wire to + for power
Black wire to G for ground
Yellow wire to S for a signal
The posts has 5/16" nuts on them. I used a deep socket on a driver although a wrench should do fine.
HINDSIGHT: I should have coated these with dielectric grease. I will disassemble and do this as soon as possible since this housing is not completely sealed. Water can enter through the same hole these wires exit the housing although this cup has a drain hole at the lowest point . . . good design.
|
|
|
|
|
|
|
|
|
