Lighting updates (run/turn/brake controller, LED blinkers and tail light)
|
 |
|
|
|
|
|
|
|
|
|
|
|
Splice in a second load balancer
|
|
The instructions indicated that if the turn signals flash normally 4 or 5 times and then flash rapidly, then another load balancer is required. After installing both rear turn signals, things still worked properly. However, after installing both front turn signals, I experienced the rapid flash issue.
Additional load balancers come with the front set and rear set of LED turn signals. But these load balancers lack a connector and a convenient connection location.

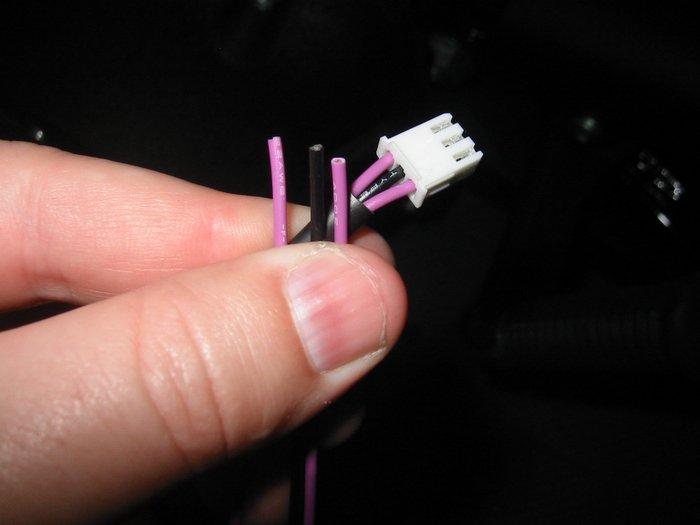

I unplugged the load balancer installed under the seat. Here you can see the 3 wires need to be spliced with the original load balancer. NOTE: there are 2 violet wires and one black. The violets are interchangable so just get the 3 wires spliced with the blacks together.
|
|
|
|
|
|
|
|
|
