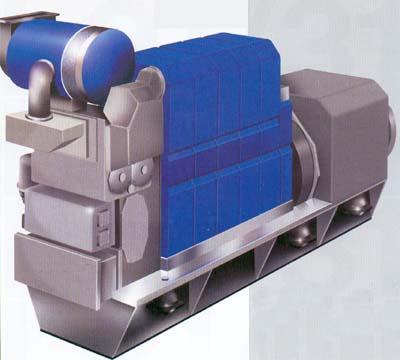

CXZ 6L16/24 medium speed diesel 600kw-570 kw 50HZ, 540 kw -515 kw 60HZ
|
 |
|
|
|
|
|
|
|
|
|
|
|
(Insert New Caption)
|
|
TYPE:L16/24Generator set
Engine
type Output Size (mm) Dry weight in tons
900r/min/60Hz 1000r/min/50Hz
Eng.kW Gen.kW Eng.kW Gen.kW A B C D
5L16/24 500-475 2751 1400 4151 2226 9.5
6L16/24 540-515 600-570 3026 1490 4516 2226 10.5
7L16/24 630-600 700-665 3301 1585 4886 2226 11.4
8L16/24 720-680 800-760 3576 1680 5256 2226 12.4
9L16/24 810-770 900-855 3851 1680 5531 2226 13.1
Configuration:In-Line Speed:900/1000r/min
Bore:210mm Pision speed:9.3/10.3m/s
Stroke:310mm Mean effective pressure:2.36/2.24MPa
Max.combustion pressure:20.OMPa Voltage:450V/400V
Fuel quality: 700cSt/50¡ãC Frequency:60/50 Hz
Free passage beween the engines,width 600mm and height 2000mm
Min.distance between engines: 2400mm(without gallery) and 2600mm (with gallery).
|
|
|
|
|
|
|
|
|
