Permanent Fuel Tank
|
 |
|
|
|
|
|
|
|
|
|
|
|
Additional Hardware
|
|
|

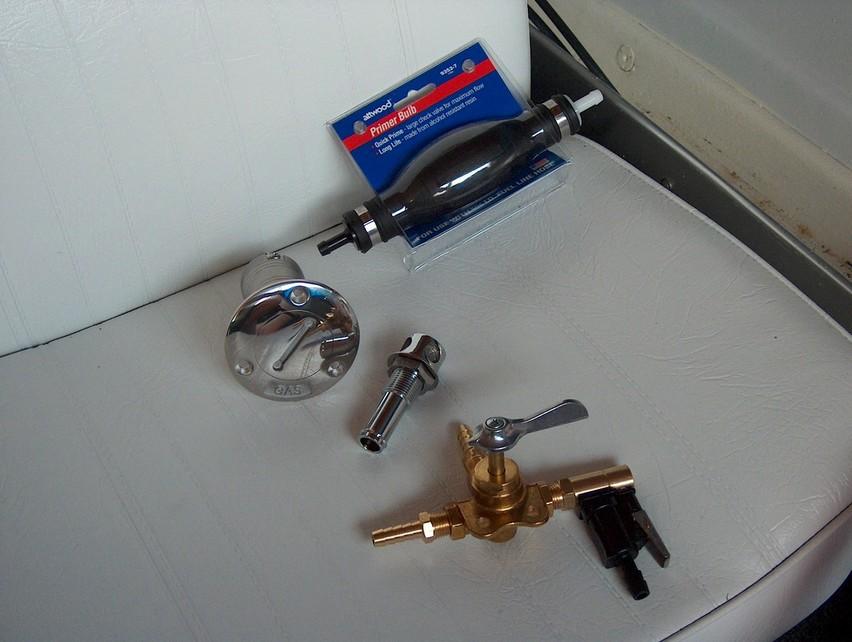

Additional hardware for project include this stainless steel fill, 3-way valve, vent, brass hose barbs, and primer bulb. Also have stainless steel hose clamps and other misc bits and pieces. The 3 way valve is designed so that if inputs are on left and right, output is on top. A fuel line connector will be one of the two inputs to the valve so a portable tank can be brought and easily connected if I want extended crusing capacity. Plan is to mount the 3-way on the inside of port gunnel just in front of the splashwell. The output hose barb gets too close to the inside top of the gunnel, so a 90* elbow will be added between the valve and hose barb to prevent possable tears or kinking of the fuel line.
|
|
|
|
|
|
|
|
|
