Tachometer interface for old OMCs
|
 |
|
|
|
|
|
|
|
|
|
|
|
Bill's simplification
|
|

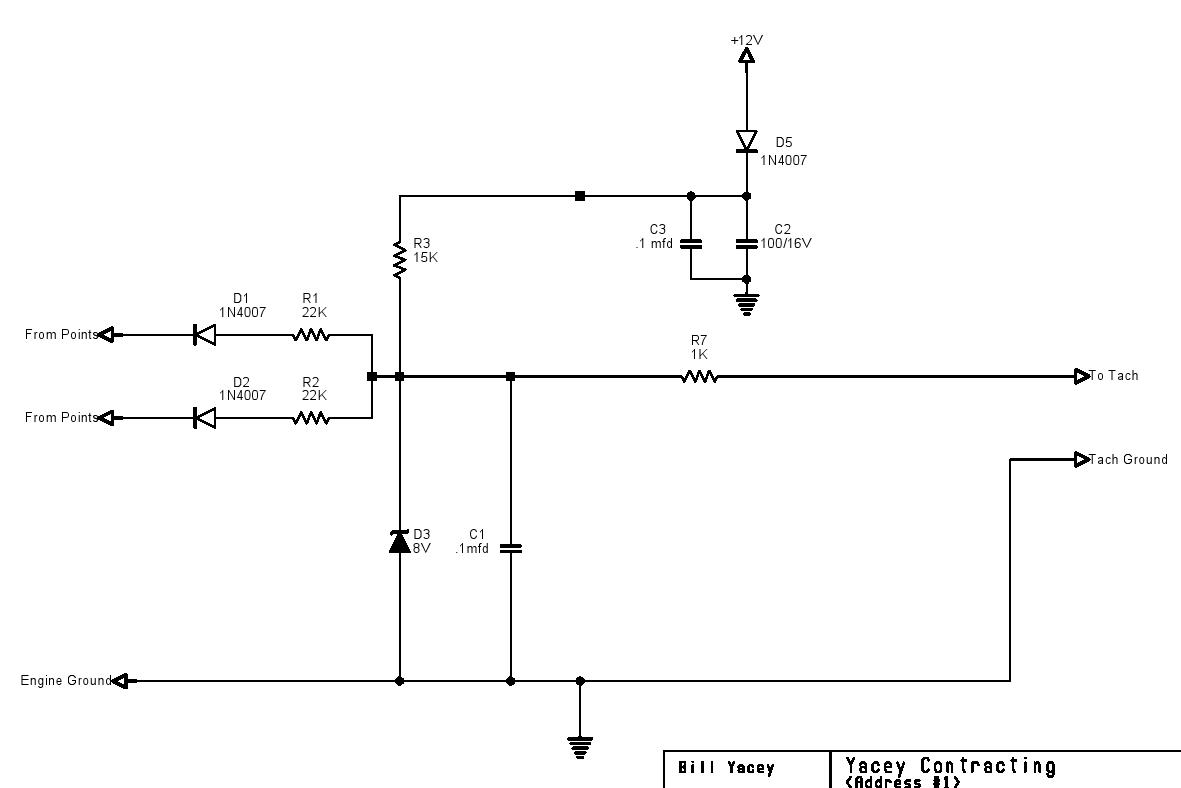

Bill Yacey simplified the interface box by chopping off the Schmitt trigger and feeding the signal raw into his tachometer. The tachometer he used employed the world's most commonly used tachometer driver IC, so I strongly recommend trying out his circuit first and seeing if it works with your tach. Just leave some extra room on your circuit board. If you observe glitches, add the Schmitt trigger and see if that cures it.
Also, Bill has a .1uF capacitor in addition to the electrolytic one for power supply bypassing. Mine ought to have one too.
|
|
|
|
|
|
|
|
|
