Styrons 15' Tunnel Hull
|
 |
|
|
|
|
|
|
|
|
|
|
|
Aft Seat with floatation added
|
|
|

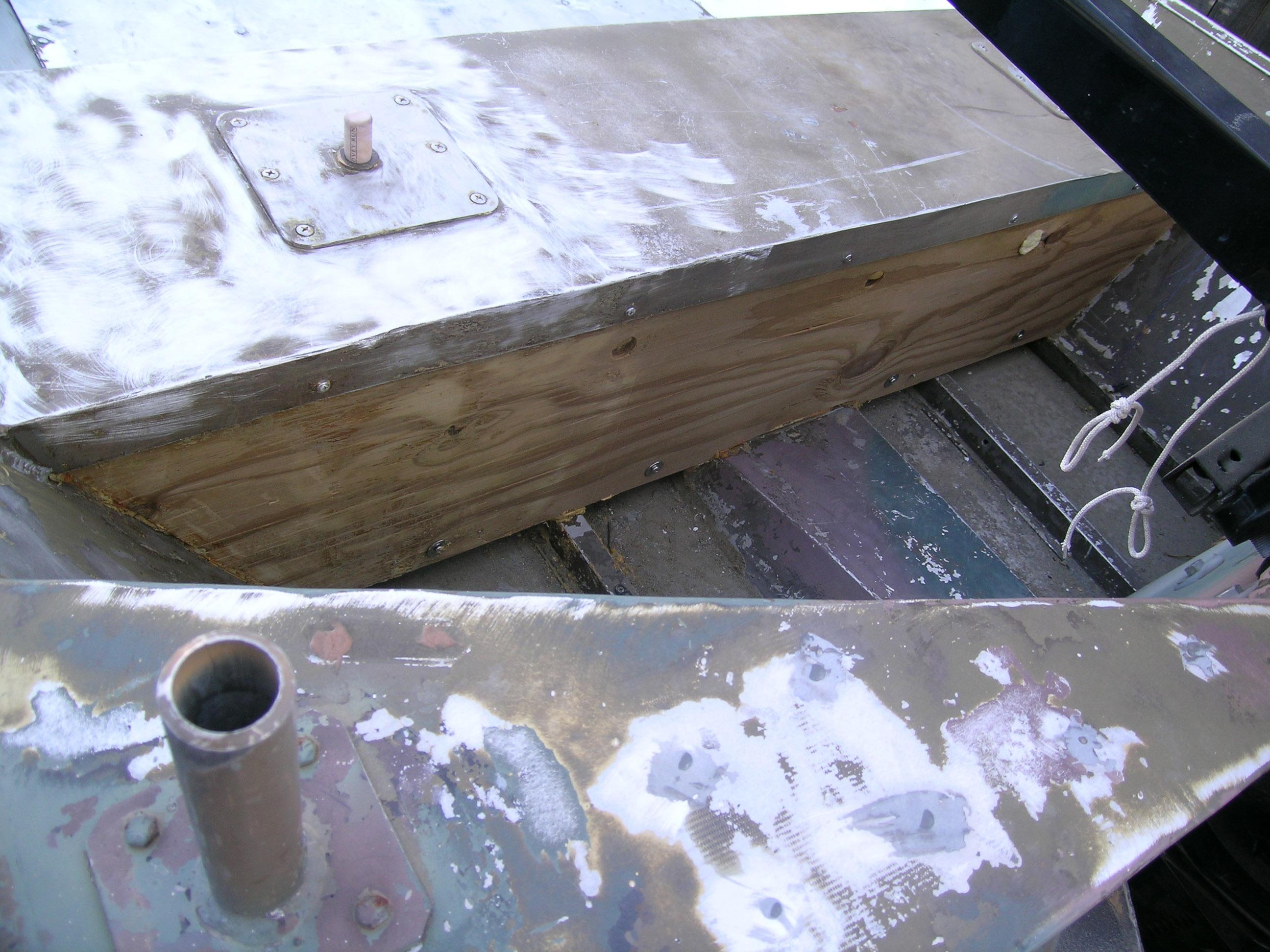

Space under seat was utilized for floatation by adding a 1/2" treated plywood bottom attached to the tops of the stringers. This allows water to pass through below. Also, as shown in this photo, is the vertical bulkhead to complete the enclosure. Foam was poured into the holes for the seat mounts. These small holes created quite a challenge to keep up with the rapidly expanding foam. Approximately 320 pounds floatation/ displacement was created.
|
|
|
|
|
|
|
|
|
