14 Ft 'Ski-Boy' Restore - Tiny-Tannic
|
 |
|
|
|
|
|
|
|
|
|
|
|
Transom Braces
|
|

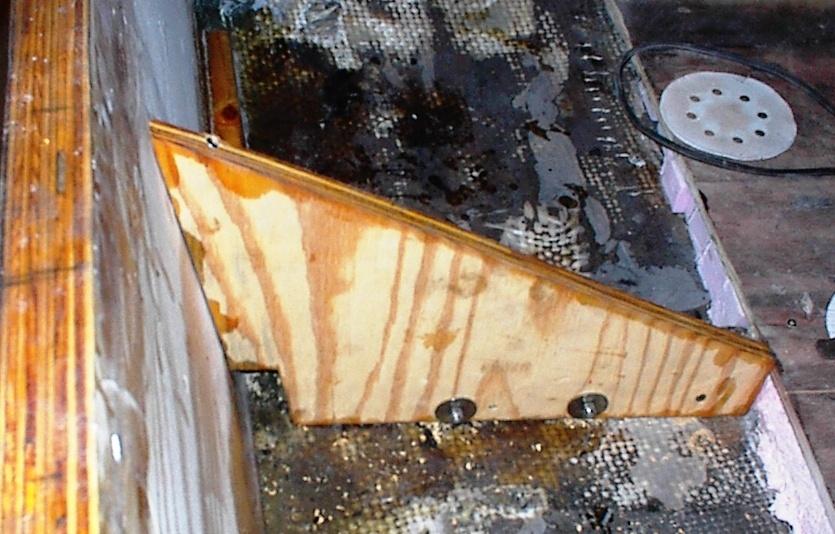

Because the rear bench seat will not come this far back and we cut the stringers short to get the transom in the boat, we are adding these transom to floor & stringer braces. These are 3/4 ply that has been 'poxy sealed on all edges. The notch in the lower left is so water can pass from the side chambers under the floor into this, the bilge. We also made these notches high enough that any water that is on top of the floor can also run down into the bilge at the rear of the boat as well.
We will also be attaching the ski pylon to these braces, so we are using 3 - 1/4 inch bolts with large fender washers, to attach each brace to the stringers. We will also be glassing these over and attaching them to the transom and floor as well.
|
|
|
|
|
|
|
|
|
